• Effect: Superior wind-lift resistance keeps large-span roofs deformation-free long-term.
• Scenario: Large-span factory roofs, logistics parks and industrial park buildings.
• After-sales: One-stop matching accessories including ridge, gutter and flashing parts.
Product Description

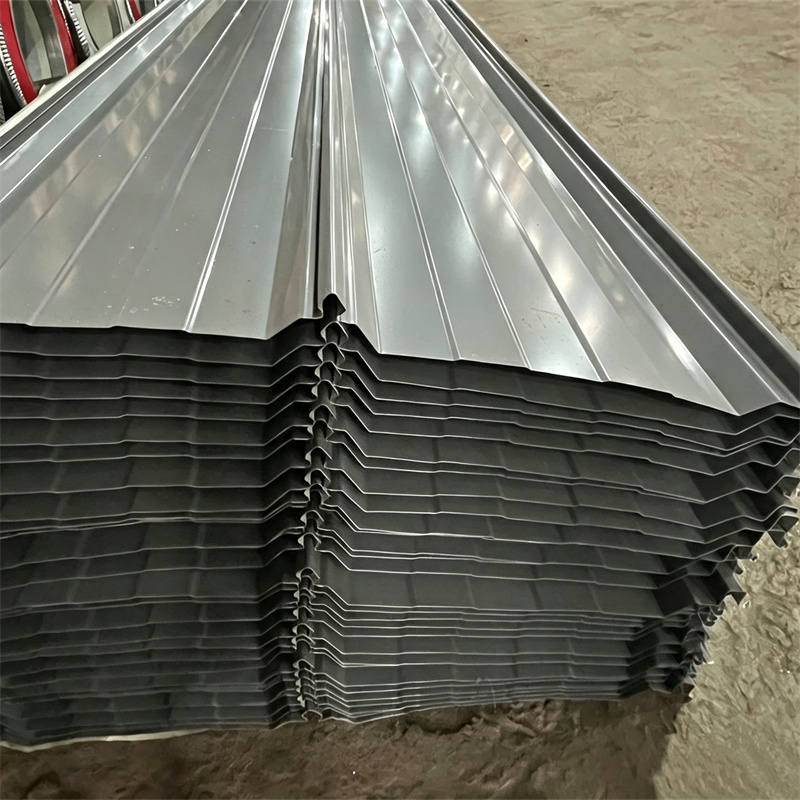

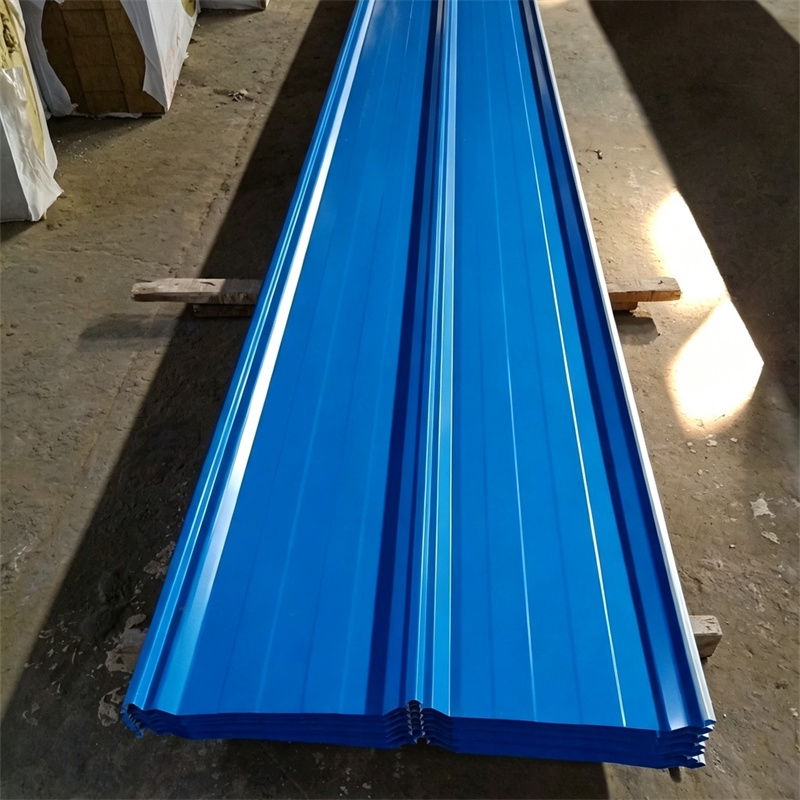

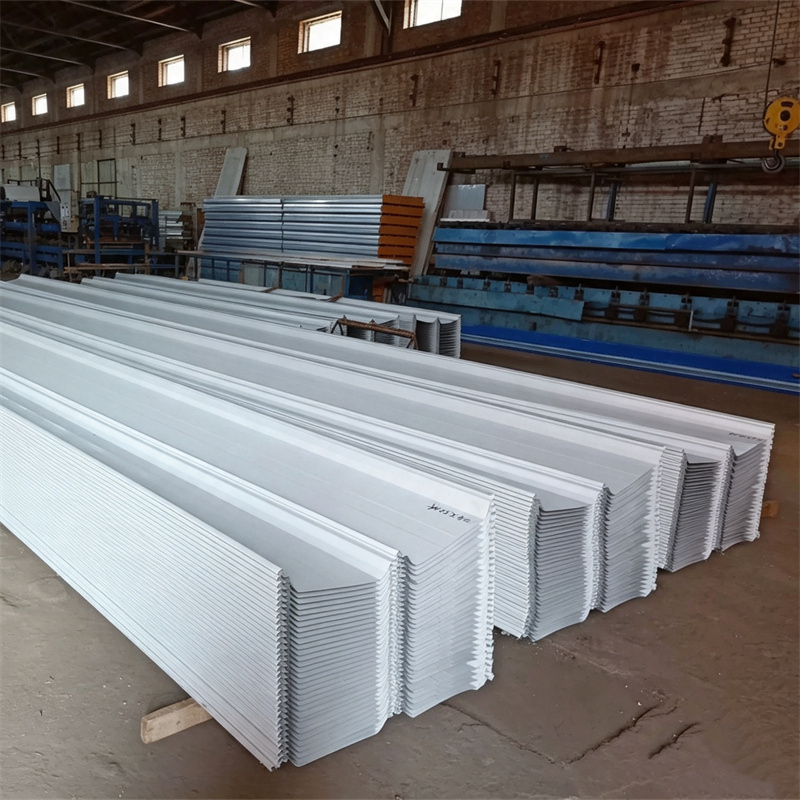

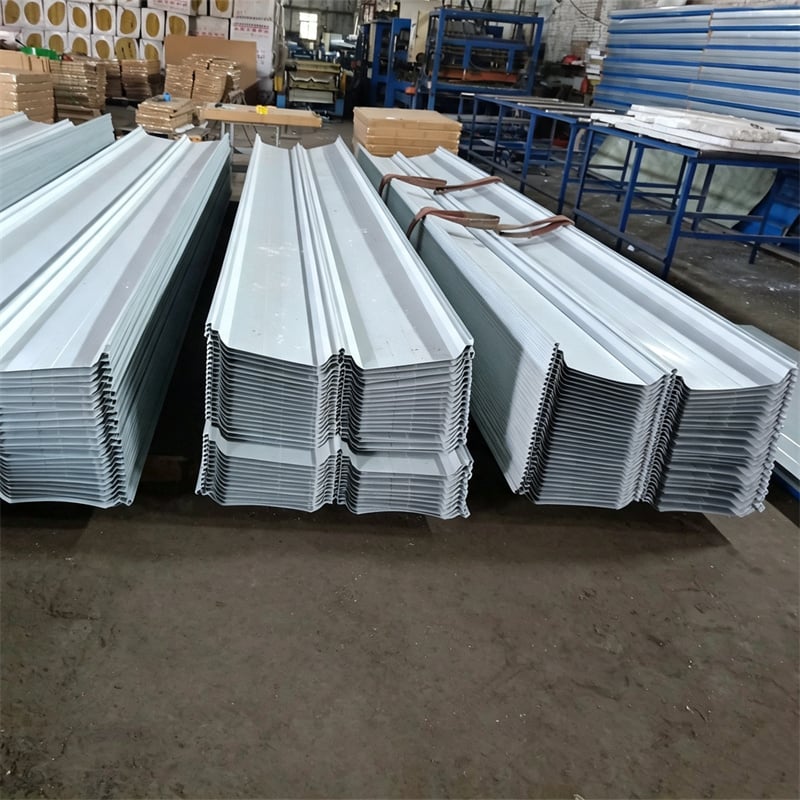

YX51-380-760 Standing Seam locking Roof Panel by Xingyuanxing is professionally engineered for large-span factory buildings, industrial workshops and large-area steel structure roofing projects. Featuring unique interlocking standing seam structure, this metal roof sheet perfectly solves common roofing problems such as water leakage, wind lifting and loose splicing, becoming the mainstream roofing solution for modern large industrial plant
Xingyuanxing customized Standing Seam locking Roof Panel redefines the safety standard of large factory roofing. Different from conventional screw-fixed roof sheets, the fully concealed interlock design eliminates exposed screw penetration, greatly improving roof waterproof performance and wind resistance. It meets the rigorous long-term operation requirements of large factories, logistics parks and industrial parks
YX51-380-760 standing seam roof panel is a high-strength integral metal roofing material specially developed for large industrial buildings. Adopting premium aluminum-zinc pre-painted steel sheet as the base material, the panel features high wave depth, strong structural rigidity and excellent overall stability. The integral locked seam structure makes the roof surface flat and neat, providing long-term safe and stable enclosure protection for large-span factory roofs
This interlocking locking roof sheet is an eco-friendly, low-carbon and durable roofing solution for large industrial construction. With recyclable metal raw materials, zero formaldehyde and stable physical properties, it effectively reduces later maintenance and replacement frequency. Its super long service life significantly lowers the overall life-cycle cost of large factory roofing projects
Xingyuanxing presents the High Strength Standing Seam Locking Panel, a next-generation high-strength roofing solution engineered for large-span factory roof applications and demanding wind-resistant roof panels performance. Designed specifically for industrial and commercial projects where structural integrity, durability, and long-term performance matter most, the standing seam locking panel delivers a reliable, efficient, and economical roofing system for large-span factory roof structures
Product Overview and Core Features
The standing seam locking panel is a high-strength roofing panel engineered to provide superior structural capacity and wind-resistant roof panels performance across large spans. Each standing seam locking panel is fabricated using high-tensile steel and optimized cross-section geometry to achieve exceptional stiffness and load-bearing capability
Applications and Suitability
The standing seam locking panel is ideal for large-span factory roof projects where uninterrupted coverage, long clear spans, and minimal intermediate supports are required. Large-span factory roof designers specify the standing seam locking panel for warehouses, logistics centers, aircraft hangars, manufacturing plants, and distribution facilities
Innovative Seam and Panel Technology
At the heart of the standing seam locking panel’s performance lies its standing seam connection technology. The panel features an interlocking seam design that mechanically locks adjacent panels together, creating a continuous, watertight, and wind-resistant roof panel system. This seam technology minimizes exposed fasteners, which reduces points of potential water ingress and enhances the aesthetic finish of the roof. The standing seam locking panel’s seam profile is optimized for quick engagement during installation while maintaining a robust mechanical lock that resists uplift under severe wind loads
Materials and Corrosion Resistance
The standing seam locking panel is produced from high-strength steel substrates with advanced protective coatings to ensure long-term durability and corrosion resistance. Coating options include zinc and aluminum-zinc alloys with polymer topcoats designed for UV stability and color retention. These coatings extend the service life of the standing seam locking panel, particularly in harsh industrial or coastal environments where corrosion resistance is essential
Wind Resistance and Structural Performance
One of the primary strengths of the standing seam locking panel is its proven wind-resistant roof panels capability. The interlocking seam and continuous panel coverage work together to resist uplift and shear forces from extreme wind events. The standing seam locking panel has been engineered with attention to seam geometry, panel stiffness, and attachment details to ensure compliance with stringent wind load requirements for large-span factory roof projects
Thermal Movement and Acoustic Performance
Large-span factory roof systems must accommodate thermal movement without compromising weather tightness. The standing seam locking panel provides controlled expansion paths through its continuous standing seams, reducing stress concentrations and maintaining panel alignment over time. Additionally, the standing seam locking panel can be integrated with insulation layers and acoustic underlays to improve thermal performance and reduce noise from precipitation or mechanical rooftop equipment
Concealed Lock Seam Design, Zero Leakage Risk: Adopts fully hidden interlocking standing seam installation without exposed self-tapping screws. Effectively avoids water seepage caused by screw hole aging and rusting, thoroughly solving the common leakage problem of large-area factory roofs.
Superior Wind Resistance, Suitable for Large-Span Roofs: The integral interlock structure tightly connects each panel as a whole, with strong wind-lifting resistance. It can adapt to large-span and high-altitude factory roofs, resisting strong winds and storms, ensuring long-term roof safety and stability.
High Structural Rigidity, Deformation Resistant: With 51mm high wave profile design, the panel has strong bearing capacity and structural stability. It is not easy to bend or deform under long-term wind and rain pressure, maintaining flat and beautiful roof appearance for years.
Fast Integral Construction, Saving Project Period: Finished panels are pre-formed in factory and delivered to site directly. The interlocking splicing method is simple and efficient, supporting large-area rapid laying. No complex on-site secondary processing, greatly shortening the construction cycle of large factory projects.
Neat Overall Appearance, High Industrial Grade: Hidden installation makes the whole roof seamless and flat with uniform lines. It improves the overall aesthetic and grade of large factories and industrial parks, meeting high-standard industrial building decoration requirements.
Removable & Reusable, Flexible for Renovation: The interlocking structure allows single-panel disassembly without damaging the overall roof system, facilitating later roof inspection, pipeline maintenance, factory expansion and renovation.
| Parameter Item | Standard Configuration Parameters |
| Base Material | Aluminum-zinc coated pre-painted steel sheet |
| Standard Panel Thickness | 0.3mm–0.8mm; customizable within the range |
| Fixed Profile Model | YX51-380-760 Standing Seam Locking Panel |
| Effective Coverage Width | 760mm |
| Wave Height | 51mm |
| Surface Coating | PE Polyester, High-Durability Polyester (HDP), PVDF Fluorocarbon (PVDF) |
| Design Service Life | PE coating: 5–10 years; HDP coating: 5–15 years; PVDF coating: up to 20 years |
Large-Span Steel Structure Factory Roofs: Super-large manufacturing workshops, industrial production plants requiring high waterproof and wind resistance.
Logistics & Warehousing Park Roofs: Large logistics sorting centers, storage warehouses, freight yards, suitable for large-area continuous roofing.
Industrial Park Comprehensive Buildings: Standard factory buildings, industrial supporting buildings, workshop renovation and expansion roofing projects.
Q1: What is the biggest advantage of standing seam locking roof panel compared with ordinary color steel roof sheet?
Different from ordinary screw-fixed roof panels, YX51-380-760 standing seam locking panel adopts fully hidden interlock installation without exposed screws. It completely avoids roof water leakage caused by screw hole rust and aging, and has stronger wind resistance, which is more suitable for large-span industrial factory roofs.
Q2: Is the standing seam roof panel suitable for large-span factory buildings?
Absolutely yes. The integral interlocking structure connects all panels into a whole, effectively improving the overall rigidity and wind resistance of the roof. The 51mm high wave profile enhances bearing capacity, which is specially designed for large-span steel structure workshops, logistics parks and industrial park roofs.
Q3: Will the standing seam roof leak water?
English: Under standard construction, zero leakage can be achieved. There are no exposed screw holes on the roof surface. The interlocking lap structure cooperates with professional waterproof accessories and reasonable roof slope design to effectively drain rainwater and avoid ponding and seepage.
Q4: Do you provide supporting installation accessories?
English: We provide one-stop supporting accessories, including ridge tiles, gutters, flashing plates, fixed brackets, sealing strips and ventilator trims. All accessories are matched with the roof panel to ensure overall waterproof and wind-resistant effect.
