• Certification: Strict incoming inspection and multi-channel quality checks before delivery.
• Tech: Self-drilling hardened drill tail drills, taps and locks in one step, no pre-drilling.
• Material: Carbon/galvanized/stainless steel, 4.8–6.3mm diameter, 25–165mm lengths, waterproof rubber washers.
• Effect: Leak-proof sealing at screw holes; stainless option resists coastal salt spray.
• Scenario: Fixing sandwich panels, profiled sheets and purlins in steel buildings.
• After-sales: One-stop accessory supply with selection guidance for every working condition.

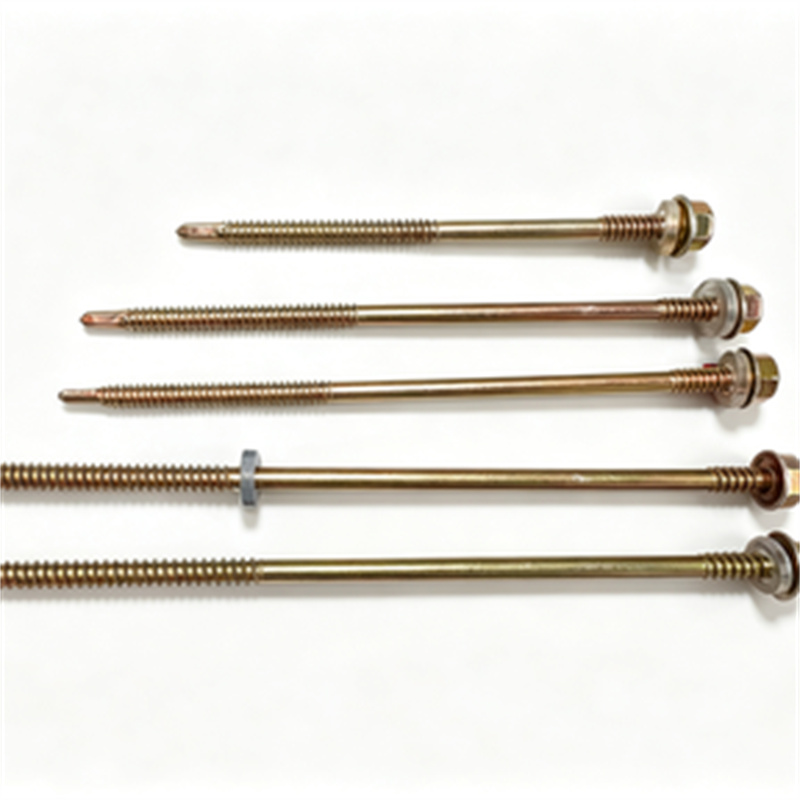

Xingyuanxing introduces a new generation of self-tapping screws for steel structure plates specially designed for color steel. These color steel roofing screws combine precise engineering with durable coatings to deliver weather-resistant fasteners tailored for modern construction needs. As building envelopes evolve, contractors and manufacturers demand construction screw innovations that provide faster installation, higher reliability, and long-term protection.
Product Overview
The self-tapping screws for steel structure plates specially designed for color steel are manufactured to secure color steel panels to steel substructures while minimizing installation time and maximizing holding power. Developed for color steel roofing screws applications, the screws feature finely tuned thread geometry and hardened tips that penetrate steel structure plates with minimal pre-drilling.
Key Features
- Optimized thread design: The thread profile is engineered for efficient chip evacuation and progressive clamping force, making these color steel roofing screws fast and consistent in application. The optimized threads interact predictably with the substrate, reducing stripping and pull-out failures, while contributing to the benefits of weather-resistant fasteners.
- Hardened self-drilling tip: A specially hardened tip ensures quick penetration into steel structure plates. This design removes the need for separate drilling operations in many scenarios, a hallmark of construction screw innovations that streamline workforce productivity. The tip geometry reduces heat and wear, extending service life for these high-strength self-tapping screws.
- Corrosion-resistant coatings: Multiple coating options are available to meet different exposure requirements. From zinc plating to advanced polymer encapsulation, the coatings turn these products into true weather-resistant fasteners that protect color steel panels from galvanic and environmental corrosion, maintaining aesthetic appeal and structural safety.
Applications
Xingyuanxing’s self-tapping screws for steel structure plates specially designed for color steel are suited to a wide range of commercial and industrial applications. Typical uses include fastening color steel roofing and cladding to purlins and girts, installing light-gauge steel partition systems, retrofitting existing metal roofs, and constructing prefabricated metal buildings.
Technical Advantages
- Pull-out resistance: The thread design and material hardness offer high pull-out performance when fastening color steel panels to steel structure plates. This strength contributes to the overall structural performance of built assemblies, allowing designers to specify these color steel roofing screws with confidence.
- Shear strength and fatigue resistance: The heat-treated steel and precise manufacturing yield impressive shear capacity and fatigue life for these self-tapping screws for steel structure plates specially designed for color steel. Projects requiring long-term durability benefit from the mechanical reliability of these high-strength self-tapping screws.
- Corrosion protection longevity: Coating systems combined with washer seals create a multilayer defense that transforms ordinary fixings into weather-resistant fasteners
Conclusion
Xingyuanxing’s self-tapping screws for steel structure plates specially designed for color steel present a complete package of performance, durability, and installation efficiency. Designed as premium color steel roofing screws and engineered as weather-resistant fasteners, they exemplify practical construction screw innovations. For builders, fabricators, and specifiers seeking reliable high-strength self-tapping screws, Xingyuanxing’s offering provides a tested, quality-driven option that addresses the demands of modern metal construction.
Same Material and Color for Unified Aesthetic Appearance: Accessories use the same base material and coating as roof and wall panels, ensuring minimal color difference. Transitions at building corners, doors/windows, and ridges are natural, presenting a clean and unified overall facade that enhances the visual quality of the factory.
Bent Profiles with Tight Fit and Strong Sealing, Corrosion-Resistant and Weatherproof, Customizable Dimensions and Colors: Combining waterproofing with decorative finishing. Angle-corrugated supports accommodate panel thermal expansion/contraction, providing secure fixation to prevent slippage and leakage; galvanized coating ensures long-term rust resistance and high roof durability. Self-tapping screws feature built-in rubber washers for leak-proof fastening, combining drilling and locking in one step for efficient and reliable installation.
Complete Product Range for One-Stop Supply: Covers all enclosure-scenario finishing, fixing, sealing, and ventilation accessories. No need to source panels, purlins, and accessories from multiple suppliers, reducing coordination efforts and procurement costs. Supporting node drawings are provided simultaneously.
Anti-Corrosion Performance Synchronized with Main Panels for Consistent Service Life: Available in galvanized and color-coated base materials, with zinc coating and paint film standards matching those of wall and roof panels. Accessories will not rust or fade prematurely, ensuring the entire enclosure system has a synchronized service life of 5–15 years.
Customizable for Various Special-Shaped Nodes: Can customize special-shaped trims, curved corner flashings, and widened flashings based on building design, panel profile widths, and roof slopes, meeting special closure requirements for large doors, stepped eaves, expansion joints, and equipment openings.
Complete Installation Support for Higher Construction Efficiency: Equipped with dedicated waterproof self-tapping screws, butyl sealing tape, and weather-resistant sealant. Accessory lap dimensions are standardized for on-site direct cutting and assembly without secondary processing, shortening the enclosure finishing construction period.
|
Parameter Item |
Standard Parameters |
|
Screw Body Material |
Carbon Steel /Galvanized carbon steel / Stainless steel |
|
Waterproof Accessory |
waterproof rubber washer |
|
Specifications |
4.8mm / 5.5mm/5.8mm/6.3mm diameter, lengths from 25–165mm optional |
|
Functions |
Self-drilling & self-tapping, waterproof sealing for screw holes |
Integrated Source Supply for Panels and Accessories: Own color steel sheet bending production line; one-stop production of wall panels, roof panels, C/Z-section steel, and full accessory sets; no intermediary markups, offering higher cost-effectiveness for complete procurement.
Full Specification Compatibility with 1:1 Matching for All Panel Profiles: Covers accessories for 900/910 wall profiles, 760/750 roof profiles, and various sandwich panel profiles. Special-shaped nodes can be quickly tooled and bent without requiring on-site secondary modifications by clients.
Unified Material and Coating, Complete Waterproof System: Accessories are produced from the same coil and coating as the main panels, minimizing color variation. Dedicated waterproof screws, sealing tape, and weather-resistant sealant form a complete waterproofing system, reducing leakage issues at the source.
Extensive Project Support Experience with Mature Node Solutions: Served numerous cold storage, workshop, warehouse, and park projects; familiar with thickened accessory upgrade solutions for coastal high-wind, severe-cold, and chemically corrosive environments, effectively extending enclosure service life.
Q1: Do I need pre-drilling before installing color steel self-tapping screws?
No pre-drilling is required. As an integrated self-drilling and self-tapping fastener, this screw is equipped with a hardened drill tail. It can directly
penetrate color steel sheets and steel purlins, completing drilling, tapping and locking in one step. It greatly simplifies construction procedures and adapts to rapid on-site installation.
Q2: Why are self-tapping screws waterproof? What is the waterproof principle?
The screws are equipped with high-elastic waterproof rubber washers. After tightening, the washers closely fit the surface of the panels and fully cover the drilling holes to block the penetration of rainwater and moisture. Cooperated with weather-resistant sealant and sealing tape, they completely prevent water leakage at screw holes and ensure long-term outdoor service for roofing systems.
Q3: How to choose between galvanized carbon steel screws and stainless steel screws?
Galvanized carbon steel self-tapping screws are cost-effective and sufficient for conventional inland factories, warehouses and dry indoor and outdoor environments with ordinary anti-corrosion requirements. For harsh working conditions such as coastal salt spray, chemical corrosion, high humidity and long-term outdoor exposure, stainless steel screws are recommended for stronger rust and corrosion resistance and longer service life.
Q4: What causes screw slipping and thread stripping during construction and how to avoid it?
Slipping and thread stripping are mainly caused by inclined construction angles, excessive drilling speed, mismatched plate thickness or improper screw specifications. To avoid defects such as thread slipping, drilling deviation and plate deformation, keep the electric drill perpendicular to the panel at a uniform low speed and select screw length and diameter according to the actual plate thickness.
Q5: What thickness of color steel sheets and steel structures are compatible with the self-tapping screws?
Conventional 4.8mm and 5.5mm diameter screws are suitable for 0.3-2.0mm thick color steel sheets, light steel purlins and thin steel plates, meeting the installation demands of most factories,
