• Material: Bonded zinc layer blocks moisture and corrosive media.
• Performance: Main-axis bending strength for heavy loading.
Product Description
Xingyuanxing I Beam, also known as I-shaped steel, is hot rolled structural steel with typical I-section. Distinguished from H-beam, channel steel and angle steel, its upper and lower flanges have an inclined inner surface, thicker at the root and thinner at the edge. Optimized for unidirectional bending load, it delivers outstanding bending strength along the main axis. Available in light series and standard heavy-duty series, produced via integrated high-temperature hot rolling, stable mechanical properties and reliable structural safety

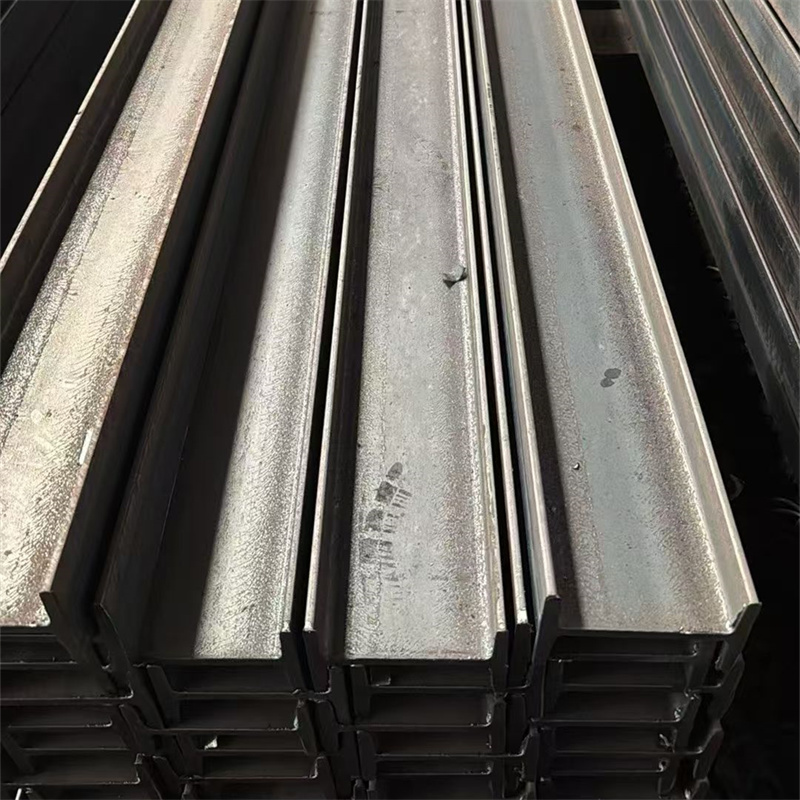

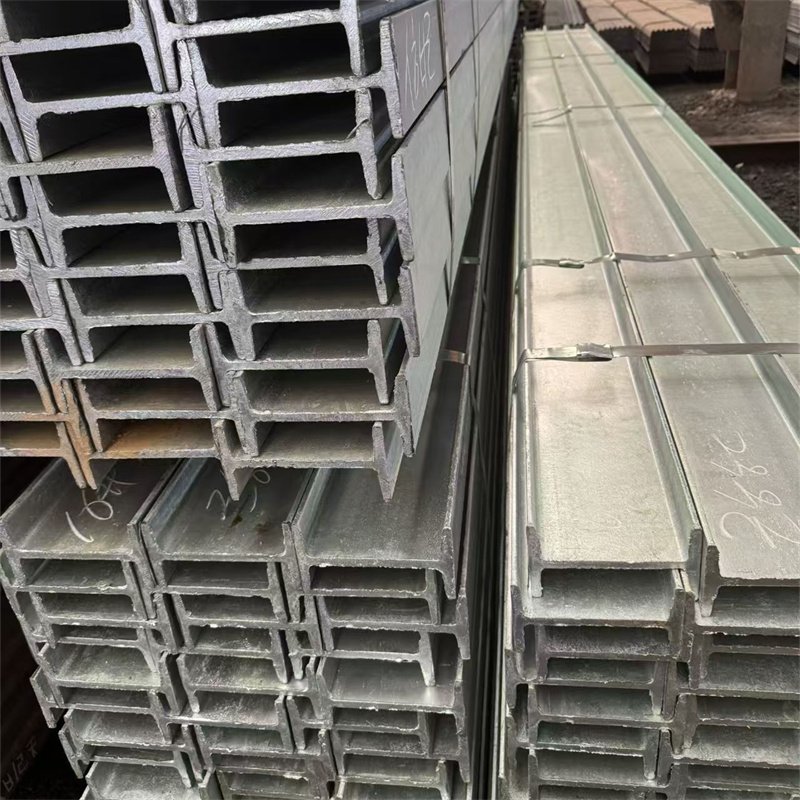

Our I beam includes two surface options: hot rolled black finish and hot-dip galvanized finish. Black hot rolled I beam features favorable cost performance and great weldability, widely adopted for indoor workshop beams, platform girders and projects with subsequent paint anti-corrosion treatment. Hot-dip galvanized I beam is covered with tightly bonded zinc layer, effectively blocking moisture and corrosive medium, extending service life in humid and open-air working conditions
All I beams adopt standardized hot rolling and straightening process. The web surface is flat, the flange symmetry is well controlled, overall straightness meets national standard requirements. The material features stable texture, good cutting, drilling and welding performance. We can process according to construction drawings to produce finished load-bearing beams, reducing on-site processing workload
Xingyuanxing presents the I-beam as a cornerstone product that defines modern structural performance and construction efficiency. As demands grow across infrastructure, commercial, and industrial sectors, the I-beam remains a primary choice for architects and engineers seeking reliable, high-strength components
The I-beam is engineered to deliver optimized load-bearing capacity through its characteristic cross-section, which concentrates material at the flanges and minimizes weight in the web. This geometry produces excellent bending resistance and shear performance, making the I-beam an economical and effective structural member across a range of spans and load conditions. Xingyuanxing manufactures I-beam products with consistent dimensional accuracy and tight tolerances, allowing quick integration into prefabricated assemblies and on-site installations
I-beam selection affects project timelines and cost profiles. For large roofs, bridges, and multi-storey frames, the I-beam provides predictable stiffness and deflection rates, simplifying calculations and reducing the need for additional bracing. The breadth of sizes available from Xingyuanxing means project teams can select I-beam sections that balance material use and performance criteria
Sustainability is an increasing priority in the construction sector, and Xingyuanxing’s I-beam contributes to sustainable steel solutions through material efficiency and recycle ability. Steel is among the most recycled construction materials, and the I-beam’s design encourages lower raw-material consumption per unit of structural capacity
The technical advantages of the I-beam produced by Xingyuanxing include high yield strength, uniform mechanical properties, and compatibility with diverse connection systems. The controlled rolling and heat-treatment protocols used in production ensure that each I-beam meets specified grades for tensile strength and ductility. These properties are critical when designers consult structural steel news and specifications that demand resilience under dynamic loading and seismic events
Innovation in I-beam design and manufacturing continues to evolve. Xingyuanxing applies precision rolling, digital profiling, and process monitoring to create I-beam sections with exacting tolerances and reduced residual stresses. This attention to precision supports modern fabrication practices, such as automated welding and CNC-driven cutting, boosting throughput and minimizing human error
The I-beam also plays a role in accelerating project schedules through prefabrication and modular integration. Standardized I-beam sections from Xingyuanxing support off-site assembly of frames and modules, reducing on-site labor and schedule risk. Prefabricated I-beam assemblies arrive ready for bolting, shortening erection times and improving safety by minimizing complex on-site welding
In terms of quality assurance, Xingyuanxing enforces rigorous inspection and testing regimes for the I-beam. Dimension checks, mechanical testing, ultrasonic inspections, and chemical analyses ensure compliance with international standards and customer specifications. Traceability systems log production parameters and certification data for each I-beam shipment
Optimized I Section, Great Unidirectional Bending Capacity — Material reasonably distributed on flanges, prominent bending resistance along main axis, perfect for horizontal girder applications.
Light & Heavy Series Available, Wide Selection Range — Light I beam for light load projects; standard heavy I beam for crane beams and medium-heavy load structures, flexible matching for different spans.
Integrated Hot Rolled Forming, Low Internal Stress — One-time hot rolling forming reduces residual stress, the beam body stays straight and is not easy to bend under long-term static load.
Dual Surface Solutions For Different Environments — Black I beam for indoor cost-saving construction; hot-dip galvanized I beam for outdoor, humid and corrosive working areas.
Convenient Deep Processing & Easy On-site Assembly — Uniform steel texture supports cutting, hole opening and welding, standard dimension tolerance ensures tight connection during installation.
High Cost Efficiency For Medium & Small Span Projects — Mature rolling technology lowers comprehensive cost, excellent economic benefit for small and medium span girder engineering.
Stable Batch Quality, Low Later Maintenance Cost — Strict raw material control guarantees consistent mechanical performance. Galvanized surface reduces frequent anti-rust maintenance work.
| Parameter Item | Standard Configuration Parameters |
| Material Grade | Q235B, Q355B |
| Surface Type | Hot Rolled Black, Hot Dipped Galvanized / |
| Product Type | Standard I Beam, Light I Beam |
| Specification Range | 10#–63# full specifications in stock, non-standard customization acceptable |
| Core Dimension | Height:100–630mm, Flange width:68–180mm, Web thickness:4.5–17mm |
| Standard Length | 6m, 9m, 12m, customizable fixed cutting |
| Execution Standard | GB/T 706 |
| Processing Service | Fixed-length cutting, drilling, punching, end face trimming, welded component processing |
Factory Crane Beam & Workshop Main Girder — Classic material for single beam overhead travelling crane, widely used as horizontal main load-bearing beam in industrial manufacturing workshops.
Steel Structure Platform & Overhead Support Girder — Applied for factory operation platform, overhead pipeline support frame and intermediate load-bearing beam of storage racks.
Small & Medium Span Building Secondary Beam — Suitable for secondary beams of light steel workshops, temporary buildings and simple steel frame construction projects.
Municipal Infrastructure & Simple Bridge Engineering — Used for pedestrian simple bridge girder, municipal support frame and auxiliary load-bearing structural parts.
Mechanical Equipment Supporting Frame — As load-bearing cross beam for large machine tools, transmission equipment and industrial testing platforms.
Professional Engineering Selection Guidance — Recommend light or standard I beam according to span, load and service environment, balance structural safety and overall project investment.
Standardized Factory Production & Strict Inspection — Produced in accordance with national hot rolling specifications, with straightness and dimension sampling test to guarantee stable quality of each batch.
One-stop Custom Deep Processing — Provide cutting, drilling, trimming and other services, reduce field machining workload and shorten construction cycle.
Complete Qualification Documents — We can provide steel mill test certificates, product qualification certificates and other compliance documents to meet the standards of project bidding and engineering acceptance.
Q1: What is the difference between I beam and H beam?
I beam features inclined flange inner surface, thin flange edge and thick root, mainly designed for unidirectional bending resistance, suitable for small and medium-span single-direction load-bearing structures. H beam has parallel flange surfaces, uniform thickness and better torsional resistance, applicable for large-span and heavy-load main structures.
Q2: What is the difference between light I beam and standard I beam?
Under the same height, light I beam has narrower flange, thinner web and lighter weight, suitable for light-load frame and secondary structure. Standard I beam has thicker sections, higher rigidity and stronger bearing capacity, ideal for crane beams and main load-bearing girders.
Q3: Is galvanized I beam suitable for outdoor and coastal projects?
Yes. Hot-dip galvanized I beam has a dense and adhesive zinc layer, which provides excellent anti-rust and salt spray resistance. It can adapt to long-term service in outdoor, humid and coastal corrosive environments.
Q4: Will the I beam deform after cutting and welding?
The hot-formed I beam has low internal stress and uniform material texture. Standard cutting and welding processes will not cause obvious bending or twisting deformation, ensuring flat assembly and structural stability.
Q5: What scenarios are I beams mainly used for?
I beams are widely used for factory crane beams, workshop main girders, steel platform beams, mechanical equipment supports, small-span building secondary beams and municipal auxiliary structures.
Q6: Can non-standard size I beams be customized?
English: We support fixed-length cutting, drilling, punching and non-standard size processing. Custom deep processing can be carried out according to customer drawings and project requirements.
