• Material: High-grade Q235B galvanized steel prevents rust.
• Scenario: Specialty structural support for modern agricultural roofs.
Product Description and Range
Several-shaped steel is a line of purpose-designed components that encompasses an array of custom steel sections, including combination angles, multi-lip beams, stepped channels, and integrated flange profiles. Manufactured by Xingyuanxing, Several-shaped steel can be produced in multiple cross-sectional geometries to serve unique load-bearing, connection, and aesthetic requirements. Each Several-shaped steel profile is created to order, enabling clients to select exact flange widths, leg lengths, thicknesses, and radii.
Key Features
- Customization: Several-shaped steel offers unmatched flexibility through tailored dimensions and geometries. Xingyuanxing’s Several-shaped steel can be adapted to meet specialty requirements for complex junctions, curtain wall supports, integrated channels for services, and other custom applications.
- Structural Performance: Designed to perform as reliable structural steel profiles, Several-shaped steel balances strength and stiffness using optimized cross-sections. The manufacturing process ensures that each Several-shaped steel product meets or exceeds applicable strength criteria for load-bearing elements.
- Hot-rolled Production: Many Several-shaped steel products are available as hot-rolled multi-shape steel, providing improved mechanical properties and better surface condition for downstream processing. Hot-rolled multi-shape steel from Xingyuanxing is produced with precise temperature control and rolling sequences to achieve consistent metallurgical and dimensional quality.
- Fabrication-Friendly: Several-shaped steel is engineered to be compatible with common fabrication techniques, including welding, bolting, punching, and bending. The profiles are produced to facilitate efficient connection details, minimizing the need for additional machining or modification.
Applications
Several-shaped steel is applicable across a wide range of sectors where custom steel sections and structural steel profiles are required:
- Infrastructure and Bridges: For pedestrian bridges, overpasses, and specialized highway structures, Several-shaped steel offers tailored cross-sections that improve load distribution and reduce overall material usage through optimized design.
- Transport and Logistics Equipment: Custom structural steel profiles manufactured as Several-shaped steel are used in trailers, frames, and racks where specific geometry increases load capacity and facilitates rapid assembly.
- Renewable Energy and Utility Structures: Towers, support frames, and service platforms can be optimized using Several-shaped steel sections to reduce weight while maintaining strength under dynamic loading.
Innovation and Technical Advantages
Xingyuanxing’s Several-shaped steel line integrates contemporary manufacturing methods and engineering expertise to deliver practical innovation. By offering hot-rolled multi-shape steel options, Xingyuanxing ensures improved mechanical integrity and a favorable balance between manufacturability and performance. Several-shaped steel profiles benefit from finite element-informed design, which allows both standard and custom cross-sections to be validated for bending, shear, and torsional loads before production.
Further technical advantages of Several-shaped steel include:
- Economical Material Use: By matching cross-section geometry to actual load paths, Several-shaped steel reduces the need for over-design, enabling cost-efficient use of steel with minimal waste.
- Simplified Connections: Custom steel sections can incorporate integrated features that reduce the number of secondary components, streamlining fabrication and on-site assembly.
- Improved Fatigue Performance: Carefully chosen hot-rolled profiles and controlled production processes result in favorable fatigue behavior for dynamic applications where repeated loading occurs.
- Compatibility with Protective Coatings: Several-shaped steel is optimized for a wide range of protective systems, including galvanizing and specialized paint finishes, extending service life in aggressive environments
Why Choose Xingyuanxing Several-shaped Steel
Xingyuanxing’s Several-shaped steel offers a unique combination of custom steel sections, structural steel profiles, and hot-rolled multi-shape steel expertise that empowers engineers and designers to realize complex designs with confidence. From tailored cross-sections to reliable hot-rolled multi-shape steel production, Several-shaped steel is a practical solution when standard profiles fall short. When performance, consistency, and customization matter, Several-shaped steel by Xingyuanxing is engineered to deliver.

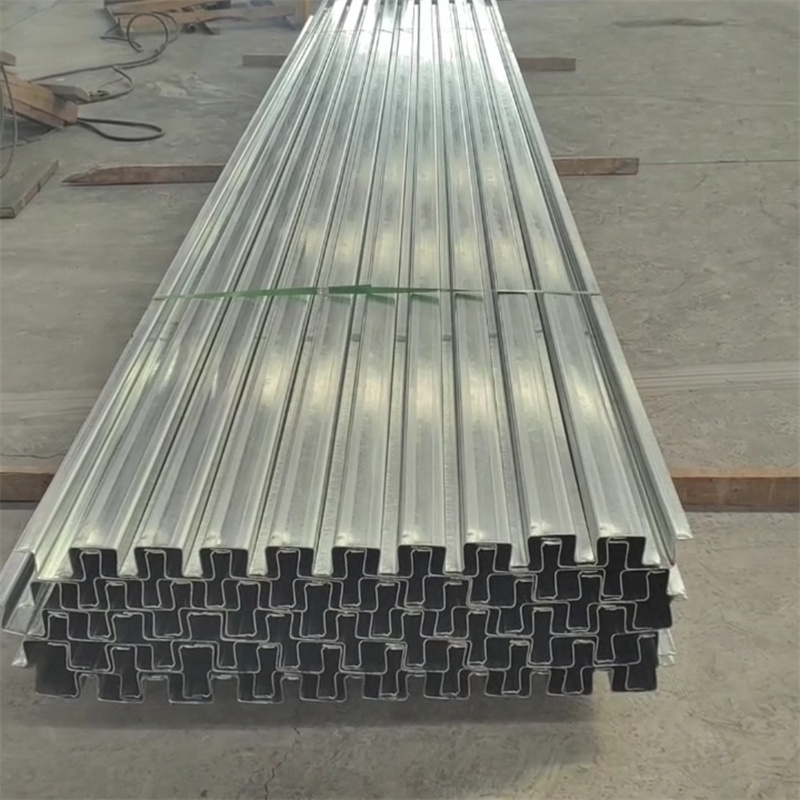

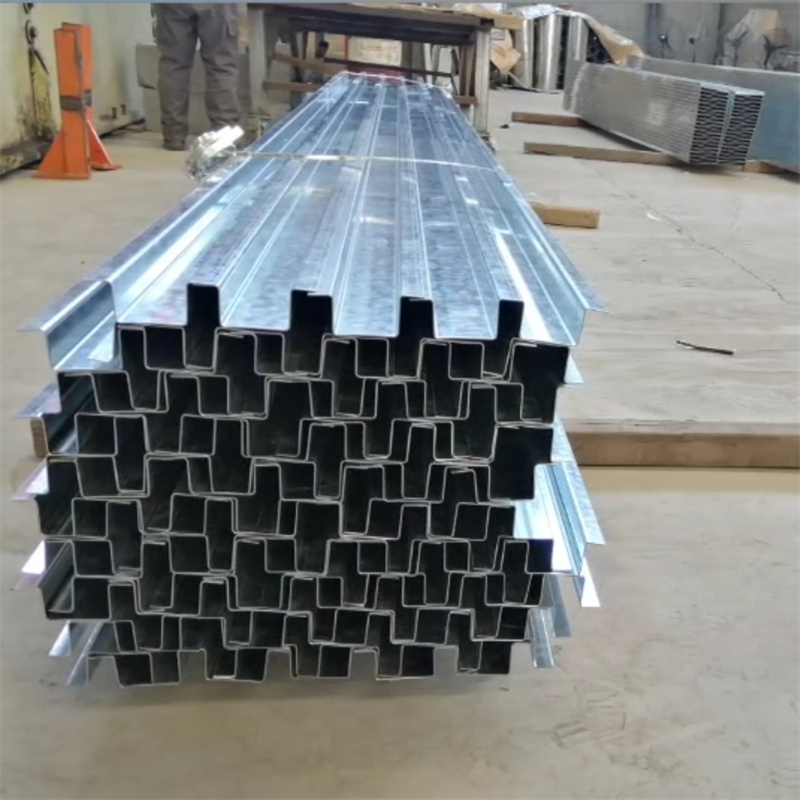

Integrated Molding, No Need For Auxiliary Purlins — One-piece Z-shaped structure with high overall structural integrity, simplifying roof construction procedures and reducing supporting material costs.
Strong Wind & Snow Resistance, Stable Load-Bearing — Continuous section stress dispersion, effectively resists strong wind, snow pressure and external impact, no roof deformation or water leakage.
Full Galvanized Anti-Corrosion, Long Service Life — Hot-dip galvanized overall treatment, dense zinc layer with strong adhesion, anti-rust and anti-oxidation for long-term outdoor use.
Lightweight & High Strength, Cost-Effective — Low self-weight reduces building load, saves steel consumption, and lowers overall project investment with high economic benefit.
Simple Installation & High Efficiency — Few assembly accessories, simple connection process, fast on-site construction, greatly shortening project cycle.
Customizable Size & Wide Adaptability — Support fixed-length cutting and non-standard size customization, adapting to greenhouses, warehouses and various light steel roof structures.
English: Low Later Maintenance Cost — Uniform galvanized layer avoids frequent rust removal and repainting, reducing post-operation maintenance workload and cost.
| Parameter Item | Standard Configuration Parameters |
| Material Grade | Q235B Carbon Steel |
| Surface Treatment | Hot Dipped Galvanized |
| Product Type | Integrated Zee Steel Profile |
| Common Specification | 50*70mm, 50*80mm, 60*80mm, customizable special sizes |
| Plate Thickness | 1.2mm–2.5mm conventional thickness |
| Standard Length | 6m, 9m, 12m, support fixed-size cutting |
| Execution Standard | GB/T 6728, National Light Steel Structure Standard |
| Processing Service | Fixed-length cutting, punching, bending, customized forming |
Agricultural Greenhouse Frame — Special profile for vegetable greenhouses, breeding greenhouses and flower planting greenhouses, stable frame and strong wind resistance, suitable for large-span agricultural facilities.
Industrial Warehouse & Factory Roof — Used for light steel warehouse roofs, factory canopies and workshop roof supporting structures, with good waterproof and load-bearing performance.
Light Steel Building Structure — Suitable for temporary workshops, simple steel structure buildings, parking shed brackets and other light load-bearing structural projects.
Municipal & Landscape Canopy — Applied for municipal sunshade canopies, landscape corridors and outdoor awning structures, beautiful and durable with low maintenance.
Logistics Storage Shelter — Ideal for temporary logistics warehouses, storage canopies and outdoor material storage protection structures, fast construction and strong practicability.
Professional Customized Selection — Recommend reasonable thickness and specification of Z steel according to local wind and snow load, span and usage environment to ensure structural safety and cost saving.
Standardized Production & Strict Inspection — Adopt cold bending integral forming process, with strict size and galvanized layer inspection to ensure flat appearance and stable batch quality.
Deep Processing Customization — Provide fixed-length cutting, punching, bending and other deep processing services to meet personalized engineering installation needs.
Complete Qualification Documents — We can provide steel mill test certificates, product qualification certificates and other compliance documents to meet the standards of project bidding and engineering acceptance.

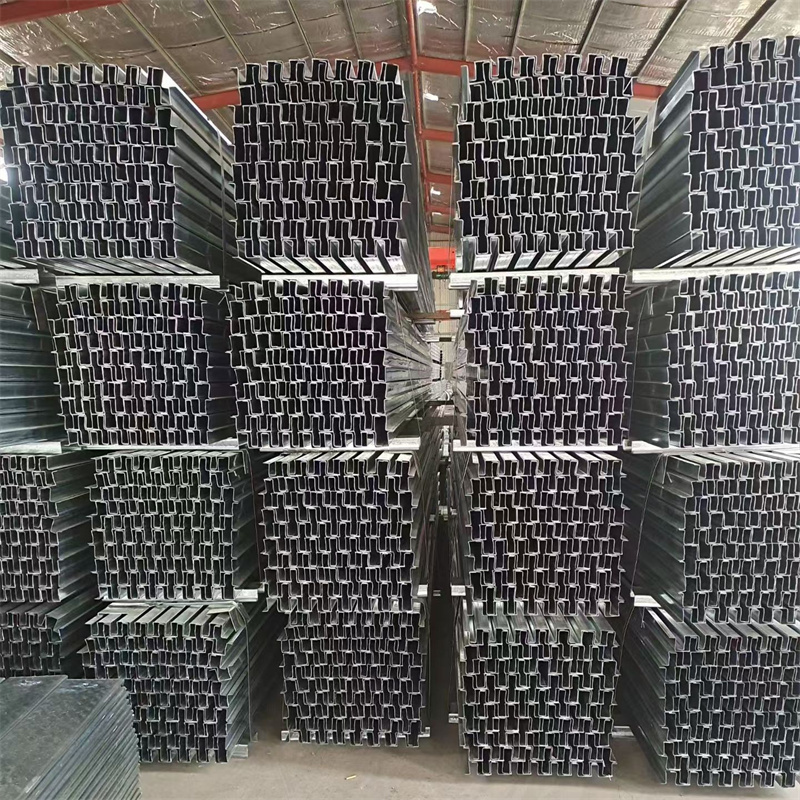

Sufficient Spot & Fast Delivery — Conventional specifications are in stock, delivery within 3–7 working days. Large project orders support batch delivery to cooperate with construction progress.
Q1: What is the advantage of Z steel compared with traditional C purlin?
English: Z steel adopts integrated one-piece molding without auxiliary purlins, with higher overall roof rigidity and better wind and snow resistance. Traditional C purlins require multi-layer matching assembly, with weak integrity and easy structural loosening after long-term use.
Q2: Is galvanized Z steel suitable for coastal and humid areas?
Absolutely suitable. The overall hot-dip galvanized layer is dense and scratch-resistant, with excellent salt spray and moisture corrosion resistance. It can maintain stable performance for a long time in coastal high-humidity and corrosive environments.
Q3: Will the Z steel frame deform under heavy snow and strong wind?
The continuous Z-shaped cross-section has uniform stress distribution and strong overall stability. It can resist conventional strong wind and snow pressure without bending or deformation, ensuring the safety of greenhouse and roof structures.
Q4: Can Z steel be customized in special sizes?
Yes. We support non-standard width, height and thickness customization, as well as fixed-length cutting and punching processing, to meet the structural design requirements of different greenhouses and buildings.
Q5: Is the installation of Z steel complicated?
The installation process is simple and efficient. The integrated profile reduces splicing procedures and connecting accessories. On-site assembly is fast, which can greatly shorten the project construction cycle.
Q6: What main scenarios is Z steel used for?
It is mainly used for agricultural planting and breeding greenhouses, industrial warehouse roofs, factory canopies, municipal landscape awnings and various light steel support structures.
